Matsayi na zamani yana rage bawul MBB-02p

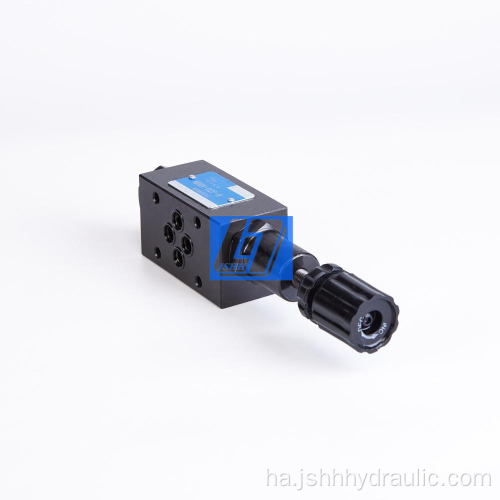

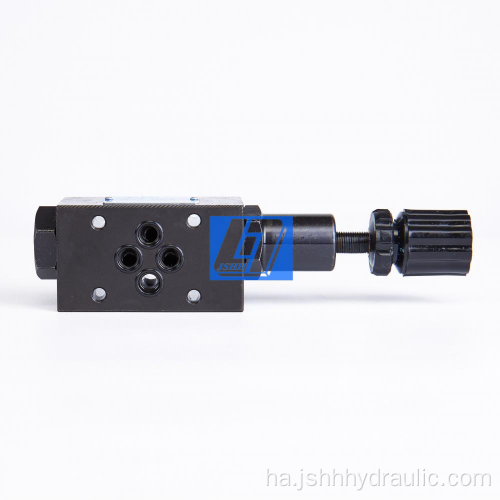

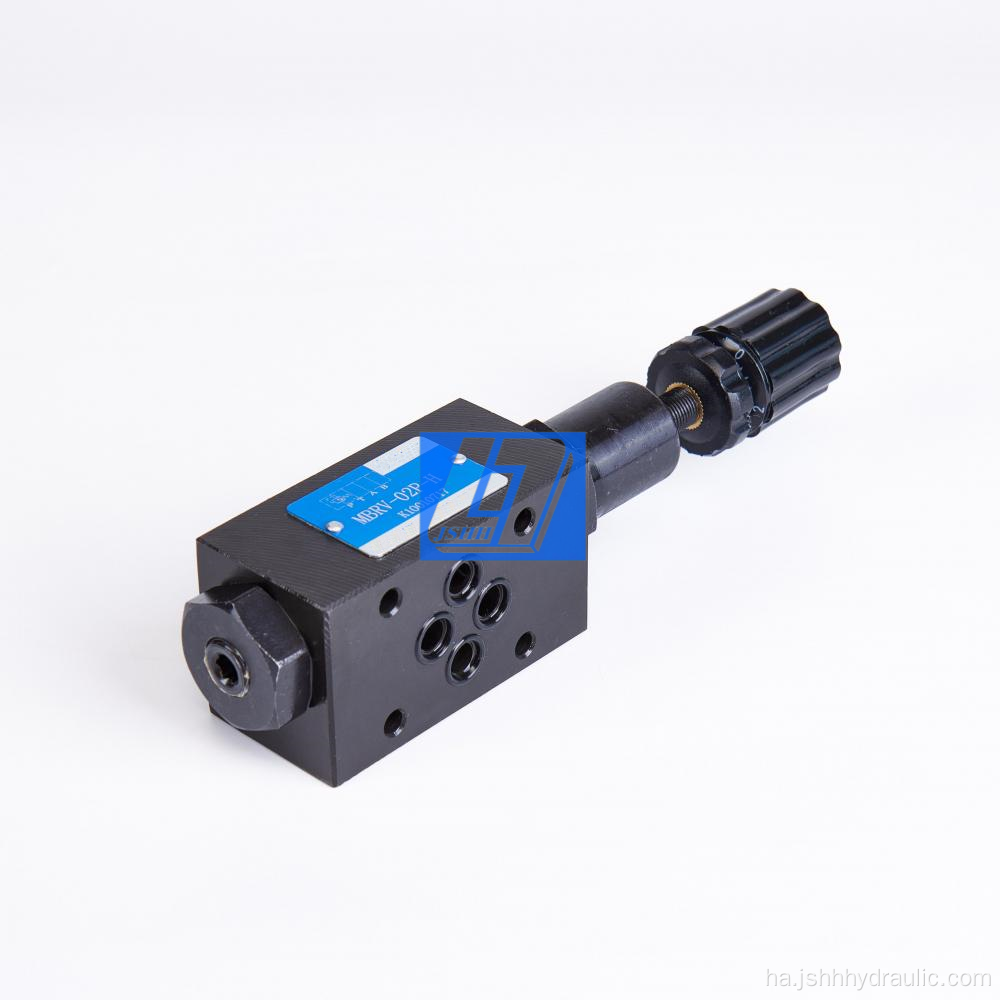

Model No.: Modular Pressure Reducing Valve MBR
Alamar: Haa hong
Medium: Oil
Warranty Period: 1 Year
Out-of-warranty Service: Video Technical Support, Online Support, Field Maintenance And Repair Service, Spare Parts
Where To Provide Local Services (in Which Countries Are There Overseas Service Outlets): Other
Showroom Location (in Which Countries Are There Sample Rooms Overseas): Other
Place Of Origin: China
Valve Type: Pressure Control Valve
Matsin lamba na zamani yana rage matsin lamba na inet ɗin da ke buƙatar matsin lamba na matsakaici, kuma ya dogara da ƙarfin matsakaici na matsakaici kai tsaye. Ya dace da aikace-aikace inda tsarin yake buƙatar haɓakawa daban-daban a lokaci guda, kuma akwai buƙatar cewa da'irar hydraulic suna da buƙatun hydraulic suna da buƙatun hydraulic.
Otwararrun orves kamar DSG Seriesa Seriesarancin SOMENEOD DESG na nuna canza shugabanci na mai suna rage ƙirar hydraulic yana taimaka muku kiyaye lafiyar.
| MBR | 02 | P | 1 | K | 2H | 50 | C |
|---|---|---|---|---|---|---|---|
| Product Series | Port Size | Control Port | Pressure Adjusting Range (Bar) | Adjusting Type | Screw Length (Mm) | Knob Direction | Design No. |
| Modular Reducing Valve Series | 02: 1/4" |
P: P port A: A port B: B port |
1S: 1.5-35 1a: 26-31 1: 3-35 2: 8-70 3: 10-250 |
K: Knob (Standard Type) M10: Without Knob |
2H: 126.7mm (none1S) 3H: 156.7mm (only1S) 4H: 186.7mm (only1S) |
＊ 02-A/P： 50: B Port Side 51: A Port Side * 02-B： 51: B Port Side 50: A Port Side |
|
| 03: 3/8" |
1: 8-70 2: 8-140 3: 10-250 |
K: Knob (Standard Type) |
- | 50: B Port Side |
|
| MODEL | SIZE | ISO | CETOP | NFPA | DIN | |
|---|---|---|---|---|---|---|
| 02 | 1/4" | 6mm | ISO 03 | CETOP 3 | D03 | NG 6 |
| 03 | 3/4" | 9mm | ISO 05 | CETOP 5 | D05 | NG 10 |
| Sayar da Rukuni | : | Piece/Pieces |
|---|---|---|
| Nau'in Kunshin | : | cakuda tare da cokali 5 Brown Box |
| Misalin Hoto | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
Packaging: cakuda tare da cokali 5 Brown Box
Yawan aiki: 10000 sets/month
Shigo: Ocean,Land,Air,Express,Express
Wurin Bayani: China
Abubuwan Abubuwan Dama: 10000 sets/month
Certificate: Ce Certificate
HS Code: 8481802990
Port: SHANGHAI ,NINGBO
Nau'in Biyan kuɗi: L/C,T/T,D/P,Paypal
Ba da fatawa: FOB,CFR,CIF,EXW
